ContiTech V-Belt Naming Changes

• Current Changes in TYMA CZ Eshop
• Practical Dimension Addition to the Belt Name

ContiTech has decided to globally standardise the naming of its industrial belts. The whole action is covered by the Continental CONTINUITY project.

Related changes are already appearing in our Eshop, where we are gradually adjusting the names of the relevant categories according to the actual marking of the belts stocked from the factory.

Current Changes in TYMA CZ Eshop

The latest changes concern V-belts.

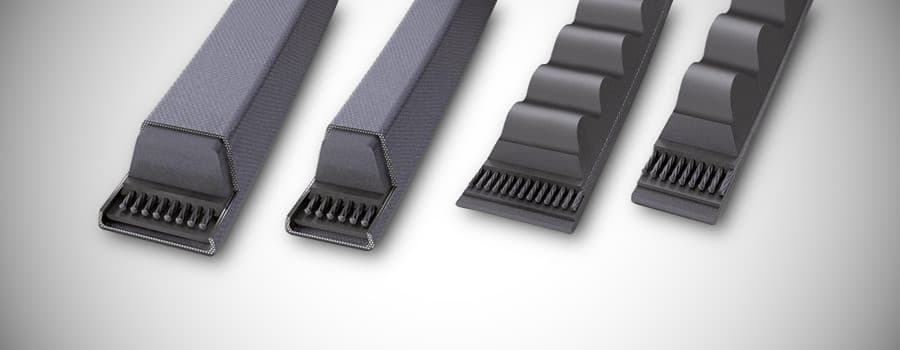

• The classic and narrow belts wrapped according to DIN 2215, DIN 7753 or the US RMA/MPTA standard are changing their marking quite subtly from CONTI-V to CONTI V. In a reinforced version with the ADVANCE attribute.
• V-belts with internal teeth cut according to DIN 2215 have changed their designation from the European CONTI-V FO or the American TORQUE-FLEX to CONTI VX.
• The high-end CONTI-V FO PIONEER narrow V-belts with internal teeth will now be known as CONTI VX ADVANCE (however, this modification is not expected to take place until the first quarter of next year, according to the manufacturer).
• The CONTI-V VARISPEED belts will carry the CONTI VX VARISPEED ADVANCE designation.

In addition to the names, all belts produced in the future will also have an updated graphic design.

Table with an Overview of Current Name Modifications in the TYMA CZ Eshop

Practical Dimension Addition to the Belt Name in the Eshop

We have modified the product names in the TYMA CZ Eshop for all classic V-belts wrapped according to DIN 2215 to include both the value of the internal length Li and the nominal length Ld.

As a result, it is now easy to convert belts of different designs and replace them with each other, for example, in a situation where the existing belts do not have the required service life, they are frequently breaking and you are looking for a better quality replacement.

Belt Naming Example

• 13x1120 Li / 13x1150 Ld A 44 CONTI V

  CONTI V classic V-belt wrapped according to DIN 2215 (formerly CONTI-V)

• SPA 1150 Ld CONTI V

  Narrow V-belt wrapped according to DIN 7753 (formerly CONTI-V)

• 13x1148 Ld / 13x1118 Li AX 44 CONTI VX

  Classic CONTI VX V-belt with internal teeth cut according to DIN 2215 (formerly CONTI-V FO)

• XPA 1150 Ld CONTI-V FO PIONEER

  CONTI-V FO PIONEER narrow V-belt with internal teeth cut according to DIN 7753 (to be renamed CONTI VX ADVANCE)

Using the nominal length of 1150 Ld (or 1148 Ld), you can easily find an equivalent or better quality replacement for the 13 mm wide belts used in combination with the SPA catalogue pulleys. Previously, only the inner length Li was mentioned in the belt name.
