17 × 11 (17/B, Green)
Connector Open-Ended V-Belt
Price without VAT: 16.37€
Price including VAT: 19.81€ with VAT
Catalogue price excluding VAT:
16.67€
The product is custom-made from a semi-finished product. It cannot be returned or replaced. In accordance with the provisions of § 1837, letter d) of Act No. 89/2012 Coll., the Civil Code (hereinafter referred to as the “Civil Code”), the consumer may not withdraw from a contract of purchase in the sense of the provisions of § 2079 et seq. of the Civil Code, if it concerns a contract on delivery of goods that have been adjusted by request of the consumer or for the consumer, concluded by means of remote communication.
In Stock We update the stock availability information every 2 hours.
The goods we have in stock are usually ready for shipping or personal collection no later than the next working day. In case of personal collection, please do not come to pick the goods up before we contact you that the goods are ready.
Belt Parameters
Multiple belts: profile – no. of ribs. Caution! The number of ribs refers to the number of belt protrusions = the number of teeth on the pulley!
Li - inside lenght, Ld - pitch length, La - outside length, Le - effective length. Timing belts z = no. of teeth.
This standardized product may come from different manufacturers. We will provide you with the currently supplied brand upon request.
In the TYMA Product Catalogues you can find this material also described with the abbreviation NR.
Belt Description

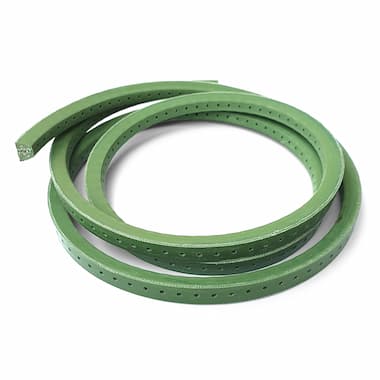

17 × 11 (17/B, Green) is a perforated (punched) open-ended belt. It is manufactured according to DIN 2216.
The body of the belt is made of a special fabric that is folded into a spiral when manufactured to create a tough layers. The fabric is characterised by its excellent wear resistance.
The belts are connected with single or open fasteners of the appropriate size according to the profile. They are of robust construction and specially designed to ensure that the belt remains flexible and elastic at the point of connection. Installation of the fastener is simple and requires just a screwdriver.
Belt Construction
- Belt perforation
- Spiral folded canvas
- Central fibre
Belt Fields of Use
The perforated V-belts enable fast installation, especially for drives with difficult disassembly, limited access or when large axial distance displacement is not possible. Complex changeovers are eliminated and machine downtime is often reduced to just a few minutes.
The most common applications of perforated V-belts are agricultural machines, simple drives, fans, presses, etc.
Belt Characteristics
- Transferring about 50% of the power of a classic V-belt
- High flexibility, can be connected directly to the machine with fasteners
- Use of standardized SPZ, SPA, SPB, SPC pulleys
- Temperature resistance from −40 °C to +70 °C
- Any length can be supplied from the roll
Documents for Download
Dimensions and Parameters of Connector Open-Ended V-Belts
TYMA CZ Data Sheets
Czech and English (PDF 173.52 kB)
