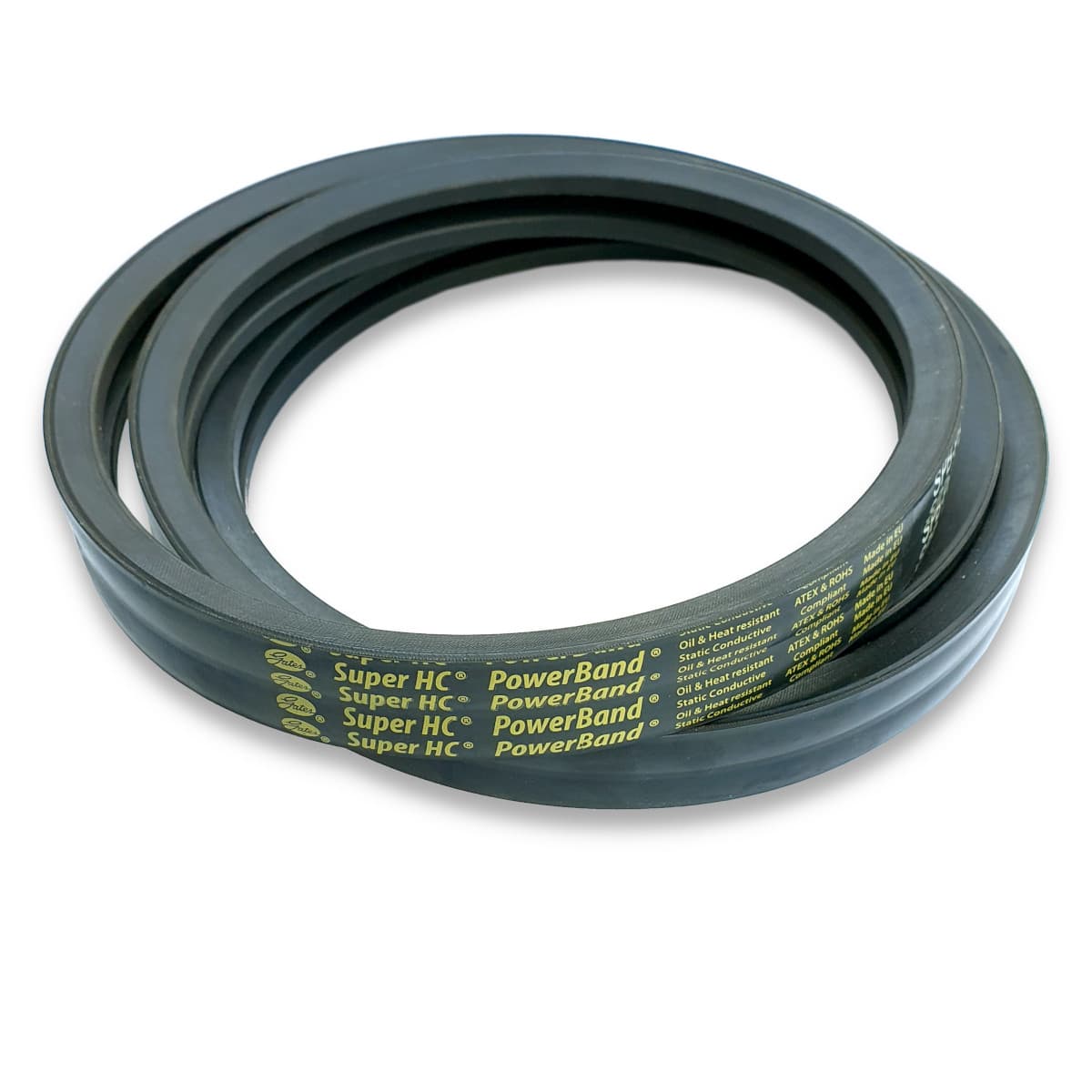

2-SPB 2800 Ld GATES Super HC
Banded V-belt
Price without VAT: 88.82€
Price including VAT: 107.47€ with VAT
Catalogue price excluding VAT:
90.63€
In Stock We update the stock availability information every 2 hours.
The goods we have in stock are usually ready for shipping or personal collection no later than the next working day. In case of personal collection, please do not come to pick the goods up before we contact you that the goods are ready.
Parameters
Nominal length, datum length or working length of the belt. It is commonly denoted as Ld or Ld, and sometimes also as Lw or Lw.
Outside length of the belt. It is commonly denoted as La or La.
The number of ribs corresponds to the number of grooves on the pulley.
In the TYMA Product Catalogues you can find this material also described with the abbreviation NR/SBR.
Description
2-SPB 2800 Ld GATES Super HC banded V-belts consist of several individual belts with a shared cover plate to form a unit. The belt profile and transmitted power remain the same as for individual belts.
The banded V-Belts are used to eliminate vibrations in the individual belts, on drives with significant impacts as well as highly irregular loads and on drives with large center distances.
Construction
- Fabric jacket
- Natural rubber bottom section
- Polyester tension member
- Natural rubber backing
Fields of Use
The banded V-Belts are used in heavy-duty machines in all industries, especially in agricultural machinery, machine tools, crushers, fans, in the paper industry, cement plants, power plants, mines and in other cases where large irregular forces must be transmitted over long span lengths.
Characteristics
- Temperature range from −40 °C to +80 °C
- Enhanced running smoothness
- Electrically conductive in accordance with ISO 1813
- Conditionally resistant to oil
- Suitable for tropical climates
- Dust-proof
