1U Sliding Guides for Roller Chains
1U sliding chain guides are standard sliding guides fixed separately directly on the machines. They reduce noise, friction and stress on the machine, as well as requirements for lubricants. They reduce the stress on the chain and increase its service life.
Chain sliding guides are made of special highly resistant plastic.
Products are sorted by name in ascending order.
1U (06B-1) - 20 × 15 mm (PE-1000, L = 2000 mm)
Chain Guide
At Supplier
Within 2 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
22.22€ excl. VAT
26.89€ incl. VAT
1U (08B-1) - 25 × 15 mm (PE-1000, L = 2000 mm)
Chain Guide
At Supplier
Within 2 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
25.82€ excl. VAT
31.24€ incl. VAT
1U (10B-1) - 25 × 15 mm (PE-1000, L = 2000 mm)
Chain Guide
At Supplier
Within 2 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
25.82€ excl. VAT
31.24€ incl. VAT
1U (12B-1) - 25 × 20 mm (PE-1000, L = 2000 mm)
Chain Guide
At Supplier
Within 2 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
31.56€ excl. VAT
38.19€ incl. VAT
1U (16B-1) - 35 × 25 mm (PE-1000, L = 2000 mm)
Chain Guide
At Supplier
Within 2 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
44.36€ excl. VAT
53.68€ incl. VAT
Products are sorted by name in ascending order.
Chain Guide Code Description
Example:
1U (10B-1) - 25 × 15 mm (PE-1000, L = 2000 mm)
| Code Part | Description |
|---|---|
| 1U |
Guide type |
| 10B-1 |
Roller chain type |
| 25 × 15 mm |
Basic dimensions b × h (width × height) |
| PE-1000 |
Guide material |
| L = 2000 mm |
Standard guide length |

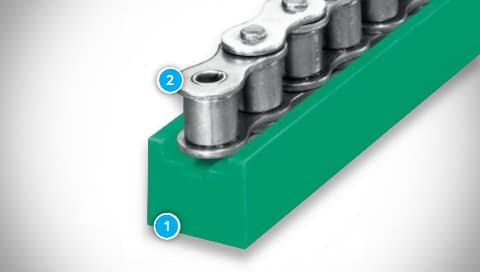

Chain Guides Construction
- Open chain guide
- Single-row roller chain
Chain Guides Fields of Use
Sliding chain guides are used in many industries, in the food, woodworking, glass, ceramic industries, on all kinds of conveyors, in distribution centers, on packaging machines, etc.
Chain Guides Characteristics
- High wear resistance
- Excellent sliding properties, without the need for lubrication
- High chemical and temperature resistance
- Vibration damping
- No need for maintenance, no corrosion
- Temperature resistance up to +80 °C
- Possibility of use in the food industry
Chain Guides Material
Special highly resistant PE-1000 plastic, standard in green design.
PE-1000 (PE-UHMW) is a polyethylene with very high molecular weight used in applications requiring a low coefficient of friction as well as extremely high durability, abrasion resistance, high impact strength and resistance to chemicals. It is characterized by very good machinability and is a suitable material for the production of sliding friction guides.
Documents for Download
Dimensions and Parameters of 1U Sliding Chain Guides
TYMA CZ Data Sheets
Czech and English (PDF 142.95 kB)
