Belt Tensioners
Belt tensioners are automatic tensioners for tensioning of belts during operation.
They consist of a lever that is flexibly mounted between two squares and attached to the base of the machine. The elastic part consists of rubber elastic segments. The tensioning pulleys of the belts are attached to the lever with a screw.
It is a universal flexible element that can simultaneously perform the functions of suspension, guidance, tensioning and damping.
RP (Rollers with Screw)
V-belt tensioner elements consisting of a plastic roller with a bearing and a fastening screw for fastening to the universal tensioner lever.
RU (Rollers with Screw)
V-belt tensioner elements consisting of a steel roll with a bearing and a fastening screw for fastening to the universal tensioner lever.
SP (Tensioning Pulley)
Cast iron pulleys for V-belts mounted on lubricated bearings. They can be supplied with a different profile or for timing belts on request.

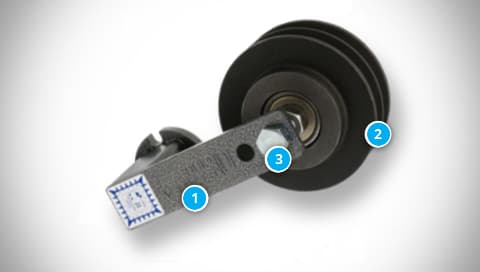

Tensioners Construction
- RE tensioning arm with thread for rear mounting
- SP Tensioning pulley
- Fixing screw with nut and washer
Tensioners Fields of Use
Belts tensioners are designed for tensioning of common industrial roller chains in all industries.
Typical application is for conveyors, roller conveyors, handling equipment, construction machinery, in the woodworking industry, packaging machines or in the food industry.
Tensioners Characteristics
- They perform damping, guiding and tensioning function
- Simple construction, easy installation
- They extend service life and reduce wear
- They reduce vibration and transmission noise
- Max. angle of rotation ±30 °
- Operating temperatures from −40 °C to +80 °C
- Maintenance-free design
Tensioners Material
Body and lever made of steel, rubber elements made of highly durable rubber.
Belts Tensioners Code Description
Example:
RE 60
| Code Part | Description |
|---|---|
| RE |
Type of belt tensioner |
| 60 |
Size |
Notice
When ordering a complete belt tensioner, always order the FE or RE tighteners element and the corresponding tension element. For belts it is RP or RU.
