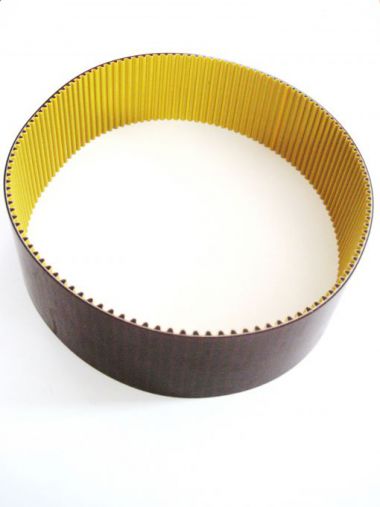

CTD C8M-800-12 CONTI SYNCHROCHAIN
Timing Belt
Parameters
Pitch length of the belt. It is commonly denoted as Lp or Lp.
In the TYMA Product Catalogues you can find this material also described with the abbreviation PU+ARAMID.
Description
CTD C8M-800-12 CONTI SYNCHROCHAIN is a timing belt with a special construction and material composition of polyurethane with aramid tensile fibers are designed for the transmission of high power, torque and high dynamic load.
Production of SYNCHROCHAIN Belts with Aramid Fibers Terminated
Within the current ContiTech offer, only CONTI SYNCHROCHAIN CARBON timing belts – with carbon fibers – are intended for the highest transmitted power. The production of previously parallel-produced CONTI SYNCHROCHAIN belts with aramid fibers was terminated in 2021. Now only the stock is being sold out, the new CONTI SYNCHROCHAIN belts from production are no longer available and will no longer be available.
CONTI SYNCHROCHAIN CARBON belts have 30% higher transmitted power, longer service life, minimal preload loss and 50% less elongation than CONTI SYNCHROCHAIN with aramid tension member. They represent the top of the world's most powerful timing belts.
Construction
- Specially treated fabric
- Polyurethane teeth
- Aramid cord tension member with S/Z twists wound in pairs
- Polyurethane backing
Fields of Use
The CONTI SYNCHROCHAIN® timing belts have been developed for extreme applications where large power outputs, high torques and high speeds have to be reliably transmitted or high dynamic stressing is in use. There is virtually no limit to the application possibilities.
Thanks to the resitance to dampness, aggressive cleansing agents and temperature fluctuations, the belts lend themselves to use in the food and packing industry, in mines, ports, conveyor systems and in general drive applications all the way through to go-carts.
Characteristics
- High transmission power and long life
- Oil-resistant
- Ozone-resistant
- Temperature range, depending on application, from −55 °C to +80 °C
- High dynamic resistance up to 40 m/s
- High abrasion resistance
- Maintenace-free
- Suitable for reverse flexing
Documents for Download
Dimensions and Parameters of CONTI SYNCHROCHAIN CTD C8M Timing Belts
TYMA CZ Data Sheets
Czech and English (PDF 265.47 kB)
