ELKU-N 500 (Nx 315) - Buffer (80 Shore A, 9 Pcs Set, Rubber)
Shaft Coupling
Price without VAT: 113.85€
Price including VAT: 137.76€ with VAT
Catalogue price excluding VAT:
116.15€
In Stock We update the stock availability information every 2 hours.
The goods we have in stock are usually ready for shipping or personal collection no later than the next working day. In case of personal collection, please do not come to pick the goods up before we contact you that the goods are ready.
Shaft Coupling Parameters
Outer diameter of the coupling. In KWD ELKU-N couplings, it is commonly denoted as d6 or d6.
Width of the element.
In the TYMA Product Catalogues you can find this material also described with the abbreviation NBR.
Shaft Coupling Description

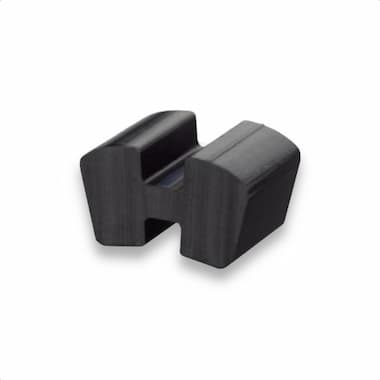

ELKU-N 500 (Nx 315) - Buffer (80 Shore A, 9 Pcs Set, Rubber) is a part designed for KWD ELKU-N shaft couplings.
KWD ELKU-N are torsionally flexible, puncture-proof shaft couplings with two metal hubs with front claws and rubber elements. They transmit torque through pressure-stressed elastic "H" shaped buffers to absorb shock and torsional vibrations. These buffers are not connected to each other but are individually mounted in the hub. The set of buffers then corresponds to a discontinuous ring-shaped element. This element is oil resistant and electrically conductive.
Shaft Coupling Construction
- One-piece hub
- Flange hub
- Claw ring
- "H" shaped elastic buffers
Shaft Coupling Fields of Use
ELKU-N elastic couplings are designed for the highest requirements in a wide range of industries, especially for compressors, pumps, conveyors and many other machines.
They are available in two-part or three-part versions and in many other variants with brake discs, brake drums or with spacers. The three-part design allows the replacement of elastic elements without the need to disassemble the machine.
Shaft Coupling Characteristics
- Compensates for angular, parallel and axial shaft misalignments of the connected machines
- Available in two- and three-piece versions, with brake drum, brake disc or spacer
- Elastic elements operate in temperature ranges of −30 °C to +100 °C
- Replacement of elastic elements without axial movement of the coupled machines (principle of the multi-part design)
- Nominal torque TKN form 25 to 100,000 Nm.
- Dimensions interchangeable with N-EUPEX couplings and other similar types
Documents for Download
Manufacturer Profile
Saxon company KWD Kupplungswerk Dresden GmbH is a specialist manufacturer of couplings and drive components. Couplings from Dresden are used in machines and installations for the extraction of raw materials, in the mechanical engineering sector, in construction and agricultural machinery, in wind power plants, in steel and rolling mill equipments and many other drives, and are rated highly due to their functionality, robustness and reliability.
KWD can look back on a lengthy engineering tradition that dates back to the period of the industrial revolution. The company has gained a leading position in the field of rail vehicle construction in the past few years - high speed trains, metros, suburban railway systems, trams, monorail vehicles and locomotives with low LCC costs which prove their worth throughout all the world's continents.
TYMA CZ is an authorized regional distributor of KWD.
