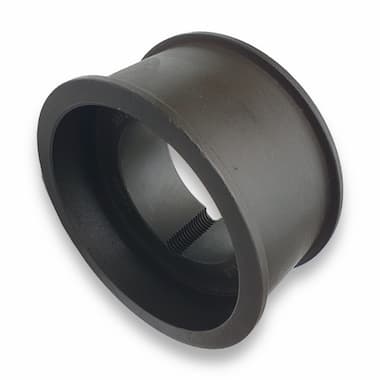

FS 090 - 32 TB 1610 with collar (Type 2, Cast Iron)
Flat Belt Pulley
Price without VAT: 47.43€
Price including VAT: 57.39€ with VAT
Catalogue price excluding VAT:
48.40€
At supplier, on request Estimated time of shipping will be announced after receiving information from our suppliers. Please, write down required amount and send a Question about the Product or just order the pulley. The shipping conditions will be sent on your e-mail address. After your confirmation the goods will be ordered from the supplier.
Pulley Parameters
Nominal diameter, datum diameter or working diameter of the pulley. It is commonly denoted as Dm or Dm, and sometimes also as Dw or Dw.
This standardized product may come from different manufacturers. We will provide you with the currently supplied brand upon request.
In the TYMA Product Catalogues you can find this material also described with the abbreviation GG.
Pulley Description
FS 090 - 32 TB 1610 with collar (Type 2, Cast Iron) is a basic type of pulley intended for all types of flat drive belts. It is made from gray cast iron. Its design is based on the DIN 111 standard.
The pulleys are mounted on shafts using the Taper Lock bushes, thanks to which there is not only a fixing on the shaft with a keyway, but also an axial locking against displacement.
Pulley Fields of Use
Flat belt pulleys are designed for all types of flat belts.
They are typically used in compressor drives, pumps, blowers, machine tools, textile machines, the paper, chemical and automotive industries, and many other industries.
Pulley Material
Gray cast iron GG 20 - GG 25.
Other materials on request.
| Parameter | Standard |
|---|---|
| Groove side wobble tolerance | DIN 111 |
| Eccentricity of O/D to bore | DIN 111 |
| Surface roughness | ISO 254 |
| Balance quality grade | VDI 2060, ISO 1940 |
Notice
- Standard catalog pulleys are statically balanced to grade q = 6.3 at 1450 rpm..
- At speeds above 30 m/s, we recommend balancing the pulleys dynamically to grade q = 6.3 and higher.
- At speeds above 42 m/s, pulleys made of C45 steel, ductile iron GGG 40 or other higher quality material must be used.
On request, the pulleys can be balanced dynamically in two planes. Enter this request during the order in the "Note" field in the last step before sending it.
Documents for Download
Dimensions and Parameters of Flat Belt Pulleys for Taper Lock Bushes
TYMA CZ Data Sheets
Czech and English (PDF 847.73 kB)
