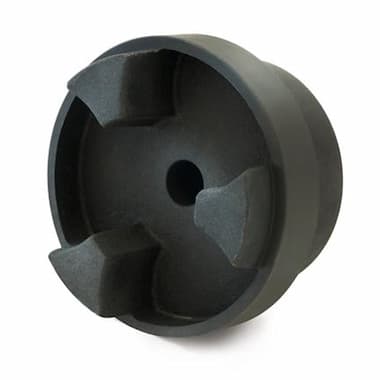

HRC 180 - Hub (Unbored, Cast Iron)
Shaft Coupling
Price without VAT: 55.35€
Price including VAT: 66.97€ with VAT
Catalogue price excluding VAT:
56.47€
At supplier, we usually ship within 2 weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
Shaft Coupling Parameters
Length of the coupling hub. In HRC couplings, it is commonly denoted as B.
Outer diameter of the coupling. In HRC couplings, it is commonly denoted as De or De.
This standardized product may come from different manufacturers. We will provide you with the currently supplied brand upon request.
In the TYMA Product Catalogues you can find this material also described with the abbreviation GG.
Shaft Coupling Description
HRC 180 - Hub (Unbored, Cast Iron) is a part designed for HRC shaft couplings.
HRC are torsionally flexible, puncture-proof shaft couplings with two metal hubs with front claws and a rubber element. They transmit torque through pressure-stressed elastic star-shaped buffer which absorbs shock and torsional vibration. HRC coupling hubs are made of gray cast iron. They are mounted on shafts using Taper Lock bushes or supplied as semi-finished products and the bore must be adjusted before mounting the coupling on the shafts.
Shaft Coupling Construction
- Hubs
- Buffer
Shaft Coupling Fields of Use
HRC flexible couplings are designed for the highest requirements in a wide range of industries, especially for compressors, pumps, conveyors, construction machinery and many other machines. They are available in two-piece cast iron design.
Shaft Coupling Characteristics
- Alignment of radial, axial and angular misalignment of shafts
- Parallel misalignment up to 0.5 mm, axial misalignment up to 1.7 mm
- Use for a temperature range from −40 °C to +100 °C
- High speed capability, cost effective solution
- Simple assembly without the need to modify the bore (applies to versions with Taper Lock bushings)
Documents for Download
Dimensions and Parameters of HRC Elastic Couplings
TYMA CZ Data Sheets
Czech and English (PDF 494.92 kB)
