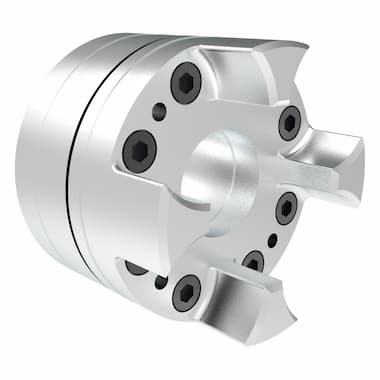

KTR ROTEX GS 28/38 6.0-35 - Hub (Steel)
Shaft Coupling
Price without VAT: 1 074,50CZK
Price including VAT: 1 300,10CZK with VAT
Catalogue price excluding VAT:
1 096,00CZK
In Stock We update the stock availability information every 2 hours.
The goods we have in stock are usually ready for shipping or personal collection no later than the next working day. In case of personal collection, please do not come to pick the goods up before we contact you that the goods are ready.
Parameters
Finished bore with H7 tolerance.
In the TYMA Product Catalogues you can find this material also described with the abbreviation ST.
Description
KTR ROTEX GS 28/38 6.0-35 - Hub (Steel) is designed for zero-backlash flexible couplings with a special plastic flexible element, which is very tightly placed in the front teeth of the coupling.
Fields of Use
Zero-backlash couplings are used in single-purpose machines, machine tools or in testing technology and fine mechanics.
They are designed for the highest requirements in a wide range of industries, especially for machine tools, testing machines, fine mechanics, dynamometers and many other machines where very small backlash is required.
They are also used in the food, chemical, paper, metalworking and automotive industries.
Characteristics
- Torque transmission without backlash
- Vibration damping from the motor shaft (up to 80 %)
- Low electrical and thermal conductivity
- Easy installation
- Small size, low moment of inertia
- Possibility of using in potentially explosive atmospheres by EG Richtlinie 94/9/EC
Couplings Parameters
- Torque: 0.35 to 190 Nm
