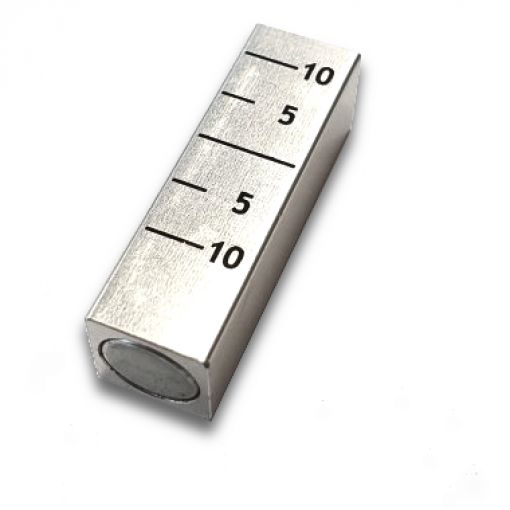

LASER ALIGNER Belt Aligner - Spare Part Target Magnet
Measuring Instrument
Price without VAT: 12.32€
Price including VAT: 14.91€ with VAT
Catalogue price excluding VAT:
12.56€
In Stock We update the stock availability information every 2 hours.
The goods we have in stock are usually ready for shipping or personal collection no later than the next working day. In case of personal collection, please do not come to pick the goods up before we contact you that the goods are ready.
Instrument Parameters
Instrument Description
Belt and chain aligners are electronic devices for setting and checking alignment – the correct position of pulleys or sprockets. It is performed at rest with the transmission stopped.
It is measured using a flat beam laser that shows the exact amount of angular deviation or misalignment of pulleys and wheels.
Correct positioning of the actuators is a prerequisite for trouble-free operation and a long service life.
Instrument Fields of Use
Alignment gauges are intended for setting the correct position during assembly and during operation of belt and chain transmissions. Using these gauges, we can easily and accurately set the required values for individual types of transmissions.
They are used in all industries.
