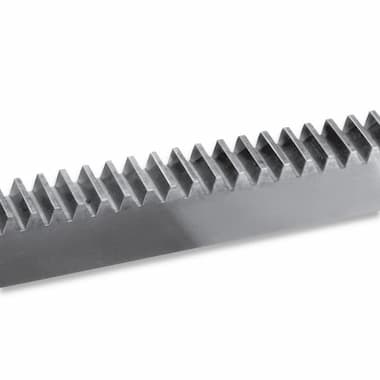

OH M2x20x500 (Steel)

Spur Gear Rack

Price for you :

Price without VAT: 9.64

Price including VAT: 11.66 with VAT

Catalogue price excluding VAT:
9.82

At supplier, we usually ship within 2 weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.

Spur Gear Rack Parameters

Module: 2
Height he (mm): 20.00
Length L (mm): 500.00 Length L
Spur gear rack length.
Width S (mm): 20.00
Brand: - Brand: -
This standardized product may come from different manufacturers. We will provide you with the currently supplied brand upon request.
Material: Steel Material
In the TYMA Product Catalogues you can find this material also described with the abbreviation ST.
Weight (kg): 1.390

Spur Gear Rack Description

OH M2x20x500 (Steel) are machine parts which, in combination with a respective gear wheel, convert the rotary motion into a linear feed and transfer mechanical energy from the shaft to the moving parts or vice versa.

They are supplied in the respective gear modules M1 to M8.

Spur Gear Rack Fields of Use

Spur gear racks are intended for general use in mechanical engineering.

The standardized spur gear racks we supply are designed primarily for basic, simpler constructions and technical solutions for conveyors, presses, gearboxes, woodworking machines, agricultural machines, but of course also for many other applications.

Spur Gear Rack Material

Steel C45 (ČSN 12050), gearing not hardened.

Documents for Download

Dimensions and Parameters of Spur Gear Racks - Preview

Dimensions and Parameters of Spur Gear Racks

TYMA CZ Data Sheets

Czech and English (PDF 164.76 kB)
