PTFE-Coated Mesh Fabrics
PTFE-coated mesh fabrics are made of glass or Kevlar fibers. The high-strength PTFEPolytetrafluoroethylene, also known as Teflon, Hostaflon or Algoflon. coating gives them excellent temperature and chemical resistance as well as excellent sliding properties.
The fabrics are produced as fabric in rolls and are supplied in many structures with different mesh sizes. They can be cut into strips or specific shapes. They are also suitable for use in contact with food according to the FDAFood and Drug Administration – the United States federal agency of the Department of Health and Human Services. In black, the fabrics also have antistatic properties.
Fabrics Construction
- Glass or Kevlar mesh fabric
- Teflon coating
Fabrics Fields of Use
PTFE-coated fabrics are designed for use in all industries where non-stick properties, low coefficient of friction and at the same time high temperature and chemical resistance or health safety and food contact certificate are required.
It is most often used for the production of endless drying or conveyor belts, which are used in the glass, woodworking, food, electrical, automotive and many other industries.
Fabrics Types and Parameters
PTFE Fiberglass Fabrics
| Foil Type | Mesh Size | Thickness | Weight | Maximum Roll Width | Illustration |
|---|---|---|---|---|---|

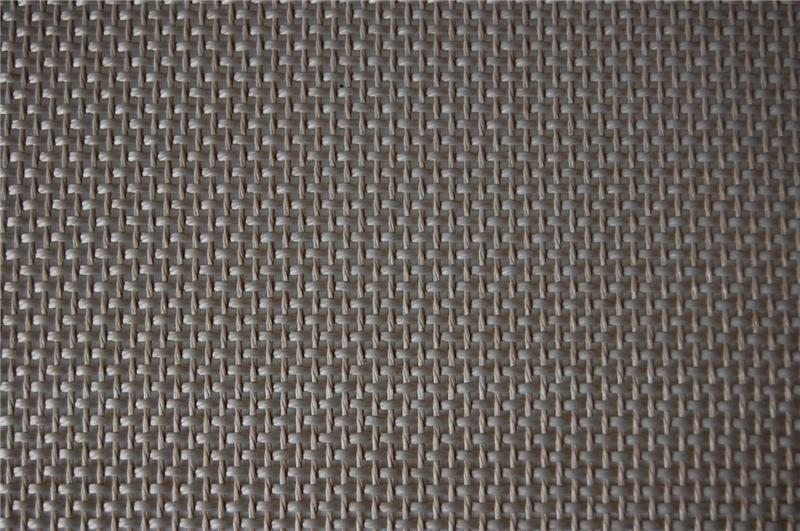

| 1 × 1 Standard Glass |
1 × 1 mm | 0.50 mm | 345 g/m2 | 2000 mm |  |
| 2 × 2 Standard Glass |
2 × 2 mm | 0.60 mm | 520 g/m2 | 2800 mm |  |
| 2 × 2 AS Antistatic |
2 × 2 mm | 0.60 mm | 520 g/m2 | 2800 mm |  |
| 4 × 4 Standard Glass |
4 × 4 mm | 0.70 mm | 470 g/m2 | 4400 mm |  |
| 4 × 4 AS Antistatic |
4 × 4 mm | 0.70 mm | 470 g/m2 | 4400 mm |  |
PTFE Kevlar Fabrics
| Foil Type | Mesh Size | Thickness | Weight | Maximum Roll Width | Illustration |
|---|---|---|---|---|---|
| 4 × 4 Aramid |
4 × 4 mm | 0.70 mm | 275 gr/m2 | 2800 mm |  |
| 4 × 4 Combined Glass/Aramid |
4 × 4 mm | 1,20 mm | 520 gr/m2 | 3000 mm |  |
Documents for Download
Dimensions and Parameters of PTFE Virginal Foils and Coated Mesh Fabrics
TYMA CZ Data Sheets
Czech and English (PDF 188.38 kB)
Related Products
PTFE Drying Belts
PTFEPolytetrafluoroethylene, also known as Teflon, Hostaflon or Algoflon.-coated mesh fabrics joined in endless dryer or conveyor belts in various types of joints, with edge reinforcement, guiding etc.
PTFE Conveyor Belts
PTFEPolytetrafluoroethylene, also known as Teflon, Hostaflon or Algoflon. foils joined in endless conveyor belts in various types of joints, with edge reinforcement, guiding etc.
PTFE Coated Foils and Tapes
White Natural PTFE Foils and Other Semi-Finished Products
Non-self-adhesive or self-adhesive foils, logs, solid or hollow rods and pipes made of natural pure PTFEPolytetrafluoroethylene, also known as Teflon, Hostaflon or Algoflon..
Question about the Fabrics Category
Do not hesitate to contact us with any questions about products in this category.
