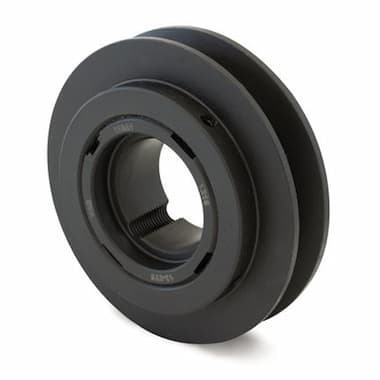

PV 164 A1 TB 1610
Variable Speed Pulley
Price without VAT: 53.24€
Price including VAT: 64.42€ with VAT
Catalogue price excluding VAT:
54.32€
At supplier, we usually ship within 2 weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
Pulley Parameters
Outside diameter of the pulley. It is commonly denoted as De or De, and sometimes also as Da or Da.
This standardized product may come from different manufacturers. We will provide you with the currently supplied brand upon request.
In the TYMA Product Catalogues you can find this material also described with the abbreviation GG.
Pulley Description
PV 164 A1 TB 1610 is pulley with a fixed speed setting, the simplest type of pulley with the possibility of changing the speed. It is used to fix the speed using a V-belt. It is made of gray cast iron.
These are a special type of V-belt pulleys that consist of a fixed and a movable rotating part. They thus enable adjusting the position of the wedge groove, thus pulley distance and belt position. The result is a gear, where the gear ratio can be set and fixed at rest, and thus also the speed of the output shaft.
The drive pulley width control is mechanical. It is performed using a thread on the movable part of the pulley. After setting the necessary diameter, the position is fixed and secured with a locking screw.
The pulleys are attached to the shafts by Taper Lock bushings (TB 1610), thanks to which they are not only fixed on the shaft with a keyway, but also axially secured against displacement.
Pulley Construction
- Inner fixed part
- Outer rotating movable part
- Locking screw to fix the position
Pulley Fields of Use
Variable speed pulleys with fixed speed settings are designed for simple applications in various industries. This is an undemanding drive solution where frequent and smooth speed changes are not required.
It is typically used in the repair of old agricultural machinery or conveyors in the ceramic and woodworking industries. Nowadays, they are very often replaced by another solution for setting the required revolutions.
Pulley Material
Gray cast iron.
Documents for Download
Dimensions and Parameters of Variable Speed Pulleys for Taper Lock Bushes
TYMA CZ Data Sheets
Czech and English (PDF 317.17 kB)
