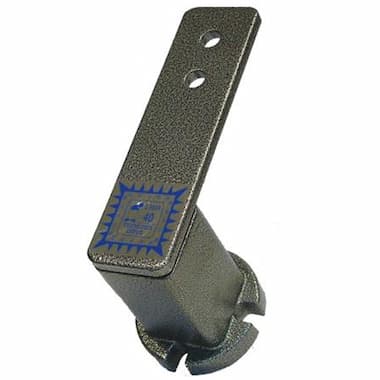

RE 30 - for M10 Screw
Tighteners Element
Price without VAT: 38.59€
Price including VAT: 46.69€ with VAT
Catalogue price excluding VAT:
39.35€
In Stock We update the stock availability information every 2 hours.
The goods we have in stock are usually ready for shipping or personal collection no later than the next working day. In case of personal collection, please do not come to pick the goods up before we contact you that the goods are ready.
Tighteners Element Parameters
Radius of mounting screw. For RE and FE tighteners elements, it is commonly denoted as A.
Outside radius of tightening arm. For RE and FE tighteners elements, it is commonly denoted as B.
Height of tightening arm. For RE and FE tighteners elements, it is commonly denoted as I.
Size of the screw to be used to attach a tensioner. For elements of universal tensioners, it is commonly denoted as M.
This standardized product may come from different manufacturers. We will provide you with the currently supplied brand upon request.
In the TYMA Product Catalogues you can find this material also described with the abbreviation ST.
Tighteners Element Description
RE 30 - for M10 Screw are the basis for automatic tensioners for tensioning of chains or belts during operation.
They consist of a lever that is flexibly mounted between two squares and attached to the base of the machine. The elastic part consists of rubber elastic segments. The tensioning pulleys of the chains or belts are attached to the lever with a screw.
It is a universal flexible element that can simultaneously perform the functions of suspension, guidance, tensioning and damping.
Tighteners Element Construction
- Base block with flexible elements
- Arm
- Thread for rear mounting
- Holes for screwing to pulley or roller
Tighteners Element Fields of Use
Tighteners elements are designed for tensioning of common industrial roller chains or belts in all industries.
Typical application is small and medium-sized roller chains – for conveyors, roller conveyors, handling equipment, construction machinery, in the woodworking industry, packaging machines or in the food industry.
Tighteners Element Characteristics
- They perform damping, guiding and tensioning function
- Simple construction, easy installation
- They extend service life and reduce wear
- They reduce vibration and transmission noise
- Operating temperatures from −40 °C to +80 °C
- Maintenance-free design
Tighteners Element Material
Steel.
Documents for Download
Dimensions and Parameters of RE and FE Tighteners Elements and SB Supports
TYMA CZ Data Sheets
Czech and English (PDF 410.26 kB)
