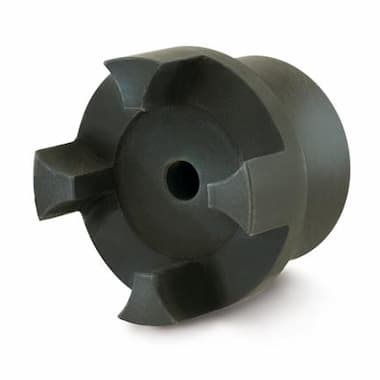

RX 19/24 (SGMAA19) - Hub (Type A, Max. Bore: 19 mm, Steel)
Shaft Coupling
Price without VAT: 9.11€
Price including VAT: 11.03€ with VAT
Catalogue price excluding VAT:
9.29€
In Stock We update the stock availability information every 2 hours.
The goods we have in stock are usually ready for shipping or personal collection no later than the next working day. In case of personal collection, please do not come to pick the goods up before we contact you that the goods are ready.
Shaft Coupling Parameters
Outer diameter of the coupling. In RX couplings, it is commonly denoted as De or De.
Overall coupling length. In RX couplings, it is commonly denoted as H.
This standardized product may come from different manufacturers. We will provide you with the currently supplied brand upon request.
In the TYMA Product Catalogues you can find this material also described with the abbreviation ST.
Shaft Coupling Description
RX 19/24 (SGMAA19) - Hub (Type A, Max. Bore: 19 mm, Steel) is a part designed for RX shaft couplings. It is made of steel.
RX are torsionally flexible, puncture-proof shaft couplings with two metal hubs with front claws and a polyurethane element. They transmit torque through pressure-stressed elastic star-shaped buffer which absorbs shock and torsional vibration. RX coupling hubs are made of steel, grey cast iron or aluminium alloy. They are mounted on shafts using Taper Lock bushes or supplied as semi-finished products and the bore must be adjusted before mounting the coupling on the shafts.
Shaft Coupling Construction
- Hubs
- Elastic spider
Shaft Coupling Fields of Use
RX flexible couplings are designed for the highest requirements in a wide range of industries, especially for compressors, pumps, conveyors, construction machinery and many other machines. They are available in two-piece aluminum, cast iron and steel design.
Shaft Coupling Characteristics
- High-quality spider design
- Handles the most demanding applications
- Operating temperatures from −40 °C to +90 °C, allowing for short peaks up to 120 °C
- Wide range of sizes. Allows for different bore diameters
- Simple assembly without the need to modify the bore (applies to versions with Taper Lock bushings)
- No backlash. Easy assembly. No maintenance.
Documents for Download
Dimensions and Parameters of RX Elastic Couplings
TYMA CZ Data Sheets
Czech and English (PDF 506.87 kB)
