STD S8M - 10 CONTI SYNCHROLINE (Neoprene, Glass Cord)
Open-Ended Timing Belt
Belt Parameters
In the TYMA Product Catalogues you can find this material also described with the abbreviation NEO+GLAS.
Belt Description

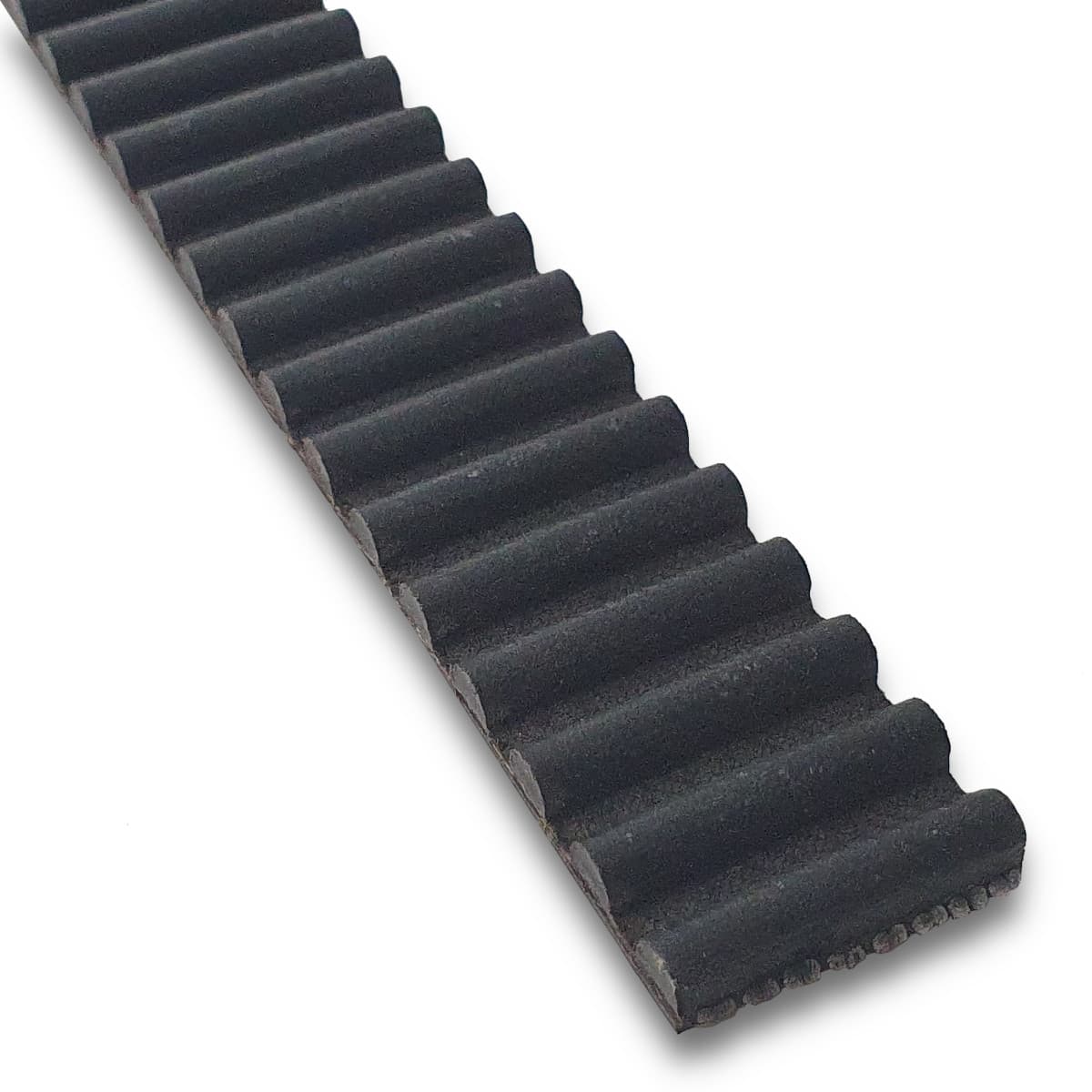

STD S8M - 10 CONTI SYNCHROLINE (Neoprene, Glass Cord) is a neoprene open-ended belts have been developed for use in automatic door opening systems.
Their excellent length stability ensures high operational reliability and a long maintenance-free service life. As lifetime products they are very hardwearing and their matched materials ensure they run smoothly in continuous operations. Construction, layout and assembly are very simple.
Belt Construction
- Polyamide fabric
- Synthetic rubber teeth
- Glass cord tension member
- Synthetic rubber backing
Belt Fields of Use
The CONTI SYNCHROLINE timing belts are mainly used in automatic door opening systems, lift doors and garage doors.
Belt Characteristics
- High transmitted power and long service life
- Conditionally resistant to oil
- Suitable for tropical climates
- Temperature range, depending on application, from −20 °C to +100 °C
Documents for Download
Dimensions and Parameters of CONTI SYNCHROLINE Timing Belts
TYMA CZ Data Sheets
Czech and English (PDF 200.91 kB)
