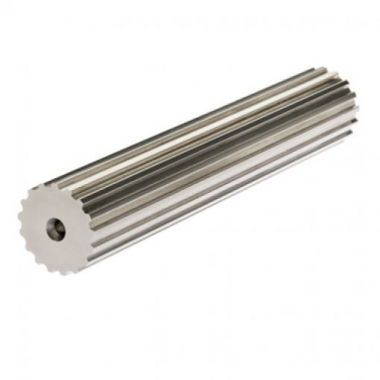

T5-15-140 (132 mm Working Length, Al Alloy)
Timing Bar
Price without VAT: 7.13€
Price including VAT: 8.63€ with VAT
Catalogue price excluding VAT:
7.26€
At supplier, we usually ship within 2 weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
Bar Parameters
This standardized product may come from different manufacturers. We will provide you with the currently supplied brand upon request.
In the TYMA Product Catalogues you can find this material also described with the abbreviation AL.
Bar Description
T5-15-140 (132 mm Working Length, Al Alloy) is a basic timing bar serving as a semi-finished product for the production of timing pulleys in the T5 profile. It is made of aluminium alloy.
Bar Fields of Use
The T5 timing bars are designed for production of T5 timing pulleys of any shape. They are used when, for any reason, the corresponding timing pulley is not available or is not standardly produced.
As well as the timing pulleys, they are used in machine tools, packaging machines, printers, single-purpose machines, in the food, paper and glass industries and in many other industries.
Bar Material
Aluminium alloy or steel.
Other materials to order.
| Parameter | Standard |
|---|---|
| Surface roughness | ISO 254 |
Notice
Timing bars of special lenght (normally max. 200 mm) can be produced on request.
Documents for Download
Dimensions and Parameters of Timing Bars
TYMA CZ Data Sheets
Czech and English (PDF 111.71 kB)
