Bando KING POWER Heavy-Duty Timing Belts
Reinforced Bando KING POWER timing belts in the STDSuper Torque Drive
The involute shape of the STD profile allows optimal tooth engagement with the pulley. As a result, it provides precise and quiet operation even at high belt speeds. (KPSKing Power Synchronous
II) profiles are designed for the highest power and torque transmission at low speeds.
The belts are made from a highly durable polyurethane compound with aramid fiber tension members. They allow long-term, maintenance-free operation, even in demanding applications requiring high transmission capacity, precision, and cleanliness. Their construction enables the reduction of belt and pulley width for compact and lightweight drive solutions.
They are an optimal alternative to chain drives.

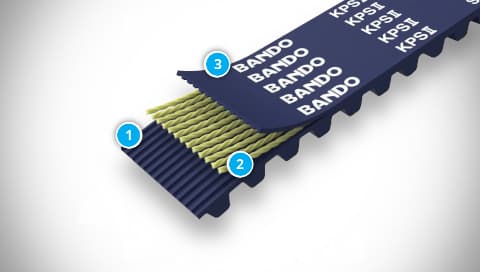

Belts Construction
- Polyurethane teeth
- Aramid tension member
- Polyurethane backing
Belts Fields of Use
Bando KING POWER are polyurethane timing belts providing powerful and reliable solutions across most industrial sectors.
They are typically used in compressors, pumps, textile machines, machine tools, presses, printing machines, and many other machines across various industries.
Belts Characteristics
- Increased power transmission capacity by 1.5 to 5 times compared to standard STDSuper Torque Drive
The involute shape of the STD profile allows optimal tooth engagement with the pulley. As a result, it provides precise and quiet operation even at high belt speeds. (STSSuper Torque Synchronous
STS is an alternative designation for the STD profile used by some manufacturers. Its involute shape allows optimal tooth engagement with the pulley, ensuring precise and quiet operation even at high belt speeds.
The STS, STD or even STPD profiles are compatible with each other and can be used in the same applications.) belts - Abrasion resistance = very clean operation (no small particles or dust released as with rubber belts)
- Low noise (approximately 3 to 5 dB lower compared to chain drives)
- Resistance to ozone
- Compact belt and pulley width
- Compatibility with rubber STDSuper Torque Drive
The involute shape of the STD profile allows optimal tooth engagement with the pulley. As a result, it provides precise and quiet operation even at high belt speeds. belts and previous-generation KING POWER belts - Works with standard pulleys in the STDSuper Torque Drive
The involute shape of the STD profile allows optimal tooth engagement with the pulley. As a result, it provides precise and quiet operation even at high belt speeds. profile
Belts Code Description
Example:
STD S14M-1960-80 KING POWER (800 KPS II 14M 1960)
The first part represents the standard belt marking system we use across all manufacturers:
| Code Part | Description |
|---|---|
| STDSuper Torque Drive The involute shape of the STD profile allows optimal tooth engagement with the pulley. As a result, it provides precise and quiet operation even at high belt speeds. |
Belt profile |
| S14M |
Tooth pitch in mm |
| 1960 |
Belt length in mm |
| 80 |
Belt width in mm |
| KING POWER |
Belt type |
The marking inside the parentheses corresponds to the manufacturer's catalog:
| Code Part | Description |
|---|---|
| 800 |
Belt width in tenths of mm (800 × 1/10 = 80.0 mm) |
| KPS II |
Belt profile name according to Bando |
| 14M |
Tooth pitch in mm |
| 1960 |
Belt length in mm |
