HTD 20M Polyurethane Open-Ended Timing Belts
CONTI SYNCHRODRIVE open-ended polyurethane timing belts in the HTDHigh Torque Drive
Because of its tooth height and semi-circular tooth geometry, the HTD profile is especially good at avoiding jump-over of the teeth in operation. The HTD profile is extremely suitable for transmitting high torques. 20M profile are made of thermoplastic polyurethane, which has high dimensional stability and mechanical resistance.
The tension member is made of specially treated steel cords of extremely high strength. The teeth are protected by PAZPolyAmid Zahne – Nylon Fabric on Teeth. Thus sometimes also mentioned as NFT. nylon fabric as standard, which also reduces the coefficient of friction and wear of the belt.
Caution
We are sorry, but there are no products offered in this category at the moment.
Please enter desired item, design and quantity, and you can send queries using the Inquiry form below.

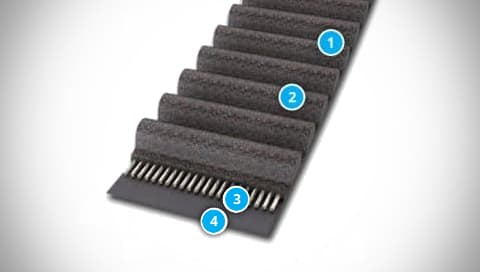

Belts Construction
- Nylon fabric on teeth – PAZPolyAmid Zahne – Nylon Fabric on Teeth. Thus sometimes also mentioned as NFT.
- Polyurethane teeth
- Steel cord tension member
- Polyurethane backing
Belts Fields of Use
HTD 20M open-ended polyurethane belts are used in the most powerful and durable linear and lifting applications.
Typical use is in rack systems, industrial elevators, gantry loaders and cranes for the highest loads.
They successfully replace applications with chain, rope or hydraulic drives.
Belts Characteristics
- High transmission power and long life
- Resistant to oil, fuel, benzol, UV radiation and ozone
- Wear-resistant
- Temperature range, depending on application, from −30 °C to +80 °C
- Maintenance-free
Belts Code Description
Example:
HTD 20M - 150 HP PAZ CONTI SYNCHRODRIVE (Black)
| Code Part | Description |
|---|---|
| HTDHigh Torque Drive Because of its tooth height and semi-circular tooth geometry, the HTD profile is especially good at avoiding jump-over of the teeth in operation. The HTD profile is extremely suitable for transmitting high torques. |
Profile |
| 20M |
Tooth pitch in mm |
| 150 |
Belt width in mm |
| HPHigh Power |
Belt version |
| PAZPolyAmid Zahne – Nylon Fabric on Teeth. Thus sometimes also mentioned as NFT. |
Belt surface layer |
| CONTI SYNCHRODRIVE |
Belt type |
| Black |
Belt color |
Documents for Download
Dimensions and Parameters of Polyurethane Open-Ended Timing Belts
TYMA CZ Data Sheets
Czech and English (PDF 903.91 kB)
Calculation of HTD 3M, 5M, 8M, 14M and 20M CONTI SYNCHRODRIVE Timing Belt Drives
ContiTech Data Sheets
Czech and English (PDF 408.03 kB)
