TNM E 128 Pb82 (82 Shore A, Cast Iron, Formerly NORMEX)
Shaft Coupling
Price without VAT: 173.37€
Price including VAT: 209.78€ with VAT
Catalogue price excluding VAT:
176.88€
In Stock We update the stock availability information every 2 hours.
The goods we have in stock are usually ready for shipping or personal collection no later than the next working day. In case of personal collection, please do not come to pick the goods up before we contact you that the goods are ready.
Shaft Coupling Parameters
Outer diameter of the coupling. In Ringfeder TNM couplings, it is commonly denoted as D1 or D1.
Overall coupling length. In Ringfeder TNM couplings, it is commonly denoted as L.
In the TYMA Product Catalogues you can find this material also described with the abbreviation GG.
Shaft Coupling Description

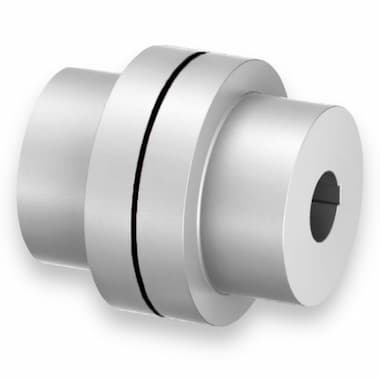

TNM E 128 Pb82 (82 Shore A, Cast Iron, Formerly NORMEX) is a set of parts for assembling the RINGFEDER TNM shaft coupling.
RINGFEDER TNM is torsionally flexible, puncture-proof shaft coupling. It transmits torque through pressure-stressed elastic buffers connected to each other in an intermediate ring, which absorbs shocks and torsional vibrations. This element is oil resistant and electrically conductive.
This TNM coupling is of series E. Each of the hubs therefore consists of only one part. When replacing a worn flexible element or disassembling and assembling, it is necessary to move the individual machine parts.
TNM coupling hubs are made of gray cast iron as unbored. They are therefore supplied as semi-finished products and the bore must be adjusted before mounting the coupling on the shafts.
TNM coupling can be used for both directions of rotation and each mounting position.
Formerly it was sold under the TSCHAN NORMEX designation.
Shaft Coupling Construction
- One-piece hubs
- Elastic ring
Shaft Coupling Fields of Use
RINGFEDER TNM (formerly TSCHAN NORMEX) elastic couplings are designed for the highest requirements in a wide range of industries, especially for compressors, pumps, conveyors and many other machines.
Robust design and excellent damping properties guarantee users maximum operational reliability, especially in applications with significant shock, alternate or vibration loads.
Shaft Coupling Characteristics
- Compensates for angular, parallel and axial shaft misalignments of the connected machines
- Elastic elements of two different Shore hardness are available
- Elastic elements operate in temperature ranges of −30 °C to +100 °C
- Max. finished bore: 280 mm
- Nominal torque of coupling TKn = 41,000 Nm / TKmax = 97,500 Nm
- Operating speed to nmax = 5000 1/min
Documents for Download
Related Products
RINGFEDER TNM G Elastic Couplings
SIT TRASCO Elastic Couplings
Couplings with front claws and elastic polyurethane star-shaped element
SIT TRASCO ES Zero-Backlash Couplings
Zero-backlash couplings with front claws and elastic polyurethane star-shaped element
Manufacturer Profile
RINGFEDER POWER TRANSMISSION GMBH is the international leader in niche markets for drive and damping technology. The company offers their users worldwide outstanding locking devices, damping solutions and coupling systems for the highest functionality and durability requirements in a wide variety of industries.
They not only provide their customers with expert advice based on almost 100 years of experience and expertise, but also develop innovative, tailor-made solutions together with them. Subsidiaries in Germany, the USA, Brazil, China and India as well as a worldwide service and partner network contribute to the global success of the company.
TYMA CZ is an authorized regional distributor of RINGFEDER.
