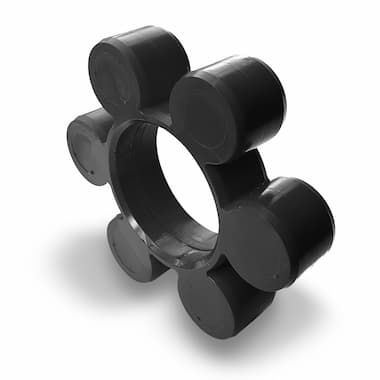

TNS 20 Pb82 - Elastic Ring (82 Shore A, Black, Rubber)
Shaft Coupling
Price without VAT: 4.92€
Price including VAT: 5.95€ with VAT
Catalogue price excluding VAT:
4.99€
At supplier, we usually ship within 2 weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
Shaft Coupling Parameters
In the TYMA Product Catalogues you can find this material also described with the abbreviation NBR.
Shaft Coupling Description
TNS 20 Pb82 - Elastic Ring (82 Shore A, Black, Rubber) is a part designed for RINGFEDER TNS shaft couplings.
RINGFEDER TNS are torsionally flexible, puncture-proof shaft couplings with two metal hubs with front claws and a rubber (Pb) or polyurethane (Vk) element. They transmit torque through pressure-stressed elastic buffers connected to each other in an intermediate ring, which absorbs shocks and torsional vibrations. This element is oil resistant and electrically conductive.
Formerly they were sold under the TSCHAN-S designation.
Shaft Coupling Construction
- One-piece hubs (ST and LST types indicated)
- Elastic ring
Shaft Coupling Fields of Use
RINGFEDER TNS (formerly TSCHAN-S) elastic couplings are designed for the highest requirements in a wide range of industries, especially for compressors, pumps, conveyors and many other machines.
Robust design and excellent damping properties guarantee users maximum operational reliability, especially in applications with significant shock, alternate or vibration loads.
Shaft Coupling Characteristics
- Compensates for angular, parallel and axial shaft misalignments of the connected machines
- Elastic elements of two different Shore hardness are available
- Elastic elements operate in temperature ranges of −30 °C to +100 °C
- Max. coupling size – 400 mm
- Max. finished bore – 160 mm
- Nominal torque of coupling TKn = 13,550 Nm / TKmax = 40,000 Nm
- Operating speed to nmax = 15,000 1/min
Documents for Download
Dimensions and Parameters of RINGFEDER TNS Elastic Couplings
TYMA CZ Data Sheets
Czech and English (PDF 473.77 kB)
Related Products
SIT TRASCO Elastic Couplings
Couplings with front claws and elastic polyurethane star-shaped element
SIT TRASCO ES Zero-Backlash Couplings
Zero-backlash couplings with front claws and elastic polyurethane star-shaped element
Manufacturer Profile
RINGFEDER POWER TRANSMISSION GMBH is the international leader in niche markets for drive and damping technology. The company offers their users worldwide outstanding locking devices, damping solutions and coupling systems for the highest functionality and durability requirements in a wide variety of industries.
They not only provide their customers with expert advice based on almost 100 years of experience and expertise, but also develop innovative, tailor-made solutions together with them. Subsidiaries in Germany, the USA, Brazil, China and India as well as a worldwide service and partner network contribute to the global success of the company.
TYMA CZ is an authorized regional distributor of RINGFEDER.
