CONTI-V MULTIBELT 8V/25J Narrow-Section Reinforced Banded V-Belts
CONTI-V MULTIBELT ADVANCE banded V-belts in 8V/25J profile are created by joining individual V-belts into one wide strip. Unlike the regular basic CONTI-V MULTIBELT types, they are made of a special fiber-reinforced mixture of rubber and reinforced tensile fiber. They are characterized by increased transmitted power and longer life, higher impact resistance, higher transverse stiffness and high temperature and chemical resistance. They are wrapped according to the US RMA/MPTA standard.
The banded V-belts are used to eliminate vibrations in the individual belts, on drives with significant impacts as well as highly irregular loads and on drives with large center distances.
Products are sorted by name in ascending order.
Low electrical conductivity – for compliance with requirements to ISO 1813.
2-8V 1250 / 2-25J 3175 ADVANCE CONTI-V MULTIBELT
Banded V-Belt
At Supplier
Within 3 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
We usually made this product from a semi-finished product during the first working day after the order.
408.65€ excl. VAT
494.47€ incl. VAT
Low electrical conductivity – for compliance with requirements to ISO 1813.
3-8V 1250 / 3-25J 3175 ADVANCE CONTI-V MULTIBELT
Banded V-Belt
At Supplier
Within 3 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
We usually made this product from a semi-finished product during the first working day after the order.
612.98€ excl. VAT
741.71€ incl. VAT
Low electrical conductivity – for compliance with requirements to ISO 1813.
4-8V 1250 / 4-25J 3175 ADVANCE CONTI-V MULTIBELT
Banded V-Belt
At Supplier
Within 3 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
We usually made this product from a semi-finished product during the first working day after the order.
817.30€ excl. VAT
988.93€ incl. VAT
Low electrical conductivity – for compliance with requirements to ISO 1813.
5-8V 1250 / 5-25J 3175 ADVANCE CONTI-V MULTIBELT
Banded V-Belt
At Supplier
Within 3 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
We usually made this product from a semi-finished product during the first working day after the order.
1,021.63€ excl. VAT
1,236.18€ incl. VAT
Low electrical conductivity – for compliance with requirements to ISO 1813.
6-8V 1250 / 6-25J 3175 ADVANCE CONTI-V MULTIBELT
Banded V-Belt
At Supplier
Within 3 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
We usually made this product from a semi-finished product during the first working day after the order.
1,225.96€ excl. VAT
1,483.41€ incl. VAT
Low electrical conductivity – for compliance with requirements to ISO 1813.
2-8V 1320 / 2-25J 3353 ADVANCE CONTI-V MULTIBELT
Banded V-Belt
At Supplier
Within 3 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
We usually made this product from a semi-finished product during the first working day after the order.
428.02€ excl. VAT
517.90€ incl. VAT
Low electrical conductivity – for compliance with requirements to ISO 1813.
3-8V 1320 / 3-25J 3353 ADVANCE CONTI-V MULTIBELT
Banded V-Belt
At Supplier
Within 3 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
We usually made this product from a semi-finished product during the first working day after the order.
642.03€ excl. VAT
776.86€ incl. VAT
Low electrical conductivity – for compliance with requirements to ISO 1813.
4-8V 1320 / 4-25J 3353 ADVANCE CONTI-V MULTIBELT
Banded V-Belt
At Supplier
Within 3 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
We usually made this product from a semi-finished product during the first working day after the order.
856.03€ excl. VAT
1,035.80€ incl. VAT
Low electrical conductivity – for compliance with requirements to ISO 1813.
5-8V 1320 / 5-25J 3353 ADVANCE CONTI-V MULTIBELT
Banded V-Belt
At Supplier
Within 3 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
We usually made this product from a semi-finished product during the first working day after the order.
1,070.04€ excl. VAT
1,294.75€ incl. VAT
Low electrical conductivity – for compliance with requirements to ISO 1813.
6-8V 1320 / 6-25J 3353 ADVANCE CONTI-V MULTIBELT
Banded V-Belt
At Supplier
Within 3 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
We usually made this product from a semi-finished product during the first working day after the order.
1,284.04€ excl. VAT
1,553.69€ incl. VAT
Low electrical conductivity – for compliance with requirements to ISO 1813.
2-8V 1400 / 2-25J 3556 ADVANCE CONTI-V MULTIBELT
Banded V-Belt
At Supplier
Within 3 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
We usually made this product from a semi-finished product during the first working day after the order.
457.03€ excl. VAT
553.00€ incl. VAT
Low electrical conductivity – for compliance with requirements to ISO 1813.
3-8V 1400 / 3-25J 3556 ADVANCE CONTI-V MULTIBELT
Banded V-Belt
At Supplier
Within 3 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
We usually made this product from a semi-finished product during the first working day after the order.
685.54€ excl. VAT
829.50€ incl. VAT
Low electrical conductivity – for compliance with requirements to ISO 1813.
4-8V 1400 / 4-25J 3556 ADVANCE CONTI-V MULTIBELT
Banded V-Belt
At Supplier
Within 3 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
We usually made this product from a semi-finished product during the first working day after the order.
914.05€ excl. VAT
1,106.00€ incl. VAT
Low electrical conductivity – for compliance with requirements to ISO 1813.
5-8V 1400 / 5-25J 3556 ADVANCE CONTI-V MULTIBELT
Banded V-Belt
At Supplier
Within 3 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
We usually made this product from a semi-finished product during the first working day after the order.
1,142.57€ excl. VAT
1,382.50€ incl. VAT
Low electrical conductivity – for compliance with requirements to ISO 1813.
6-8V 1400 / 6-25J 3556 ADVANCE CONTI-V MULTIBELT
Banded V-Belt
At Supplier
Within 3 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
We usually made this product from a semi-finished product during the first working day after the order.
1,371.08€ excl. VAT
1,659.01€ incl. VAT
Low electrical conductivity – for compliance with requirements to ISO 1813.
2-8V 1500 / 2-25J 3810 ADVANCE CONTI-V MULTIBELT
Banded V-Belt
At Supplier
Within 3 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
We usually made this product from a semi-finished product during the first working day after the order.
481.23€ excl. VAT
582.28€ incl. VAT
Low electrical conductivity – for compliance with requirements to ISO 1813.
3-8V 1500 / 3-25J 3810 ADVANCE CONTI-V MULTIBELT
Banded V-Belt
At Supplier
Within 3 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
We usually made this product from a semi-finished product during the first working day after the order.
721.83€ excl. VAT
873.41€ incl. VAT
Low electrical conductivity – for compliance with requirements to ISO 1813.
4-8V 1500 / 4-25J 3810 ADVANCE CONTI-V MULTIBELT
Banded V-Belt
At Supplier
Within 3 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
We usually made this product from a semi-finished product during the first working day after the order.
962.44€ excl. VAT
1,164.55€ incl. VAT
Low electrical conductivity – for compliance with requirements to ISO 1813.
5-8V 1500 / 5-25J 3810 ADVANCE CONTI-V MULTIBELT
Banded V-Belt
At Supplier
Within 3 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
We usually made this product from a semi-finished product during the first working day after the order.
1,203.05€ excl. VAT
1,455.69€ incl. VAT
Low electrical conductivity – for compliance with requirements to ISO 1813.
6-8V 1500 / 6-25J 3810 ADVANCE CONTI-V MULTIBELT
Banded V-Belt
At Supplier
Within 3 Weeks Usual time this product is ready for shipping. Actual availability may vary due to unforeseen circumstances in exceptional cases.
We usually made this product from a semi-finished product during the first working day after the order.
1,443.67€ excl. VAT
1,746.84€ incl. VAT
Products are sorted by name in ascending order.

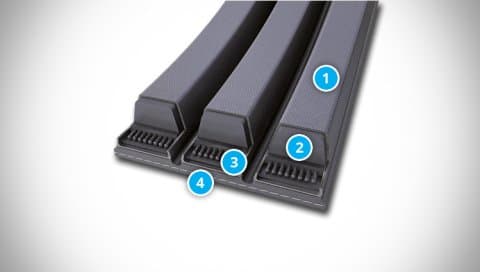

Belts Construction
- Fabric jacket
- Fiber-reinforced synthetic rubber bottom section
- Polyester tension member
- Fiber-reinforced synthetic rubber backing
Belts Fields of Use
CONTI-V MULTIBELT ADVANCE banded V-belts find use in heavy-duty machines in all industries, especially in agricultural machines, machine tools, crushers, fans, in the paper industry, in cement plants, in power plants, in mines and in other cases where a non-uniform load is transmitted at large axial distances.
Belts Characteristics
- Transmission of increased load, smooth, quiet operation, long service life
- Increased resistance to shocks and uneven loads
- Resistance to oil and other chemicals
- Temperature resistance from −40 °C to +80 °C
- Antistatic properties according to ISO 1813
Belts Code Description
Example:
5-8V 1700 / 5-25J 4318 Le ADVANCE CONTI-V MULTIBELT
| Code Part | Description |
|---|---|
| 5 |
5-Banded |
| 8V |
Profile |
| 1700 |
Effective lenght in inch (1500×1/10=150.0") |
| 5 | 5-Banded |
| 25J | Profile |
| 4318 Le | Effective lenght in mm |
| ADVANCE |
Model series |
| CONTI-V MULTIBELT |
Type of belt |
Belts Certification
- Factory Electrical Conductivity Certificate of Belts According to ISO 1813 and ISO 9563 (pdf, 104.90 kB)
- ContiTech Explanation of ATEX Certification (pdf, 11.96 kB)
Notice
General factory certificates are not sufficient for belts used in potentially explosive atmospheres.
If a test report according to ISO 1813 and ISO 9563 is required for the application, it is necessary to inform us of the request for delivery of belts including the certificate when ordering them (when ordering belts via Eshop, please write this request in the "Note" field before by sending the order). The certificate is issued by ContiTech after the test in the production plant.
