BANDO BANCOLLAN VC V-Belts
Bando BANCOLLAN VC V-belts with internal teeth and a smooth outer side for use on pulleys with diameters starting from 16 mm.
The belts are made from a special high-flexibility BANCOLLAN polyurethane compound and polyester tension members. They are also suitable for applications requiring high precision and cleanliness.

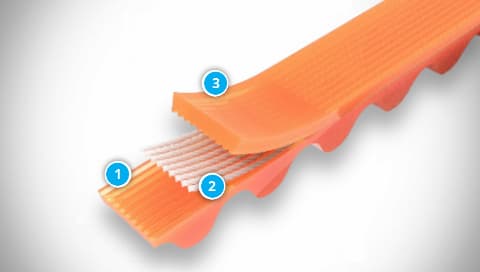

Belts Construction
- Polyurethane belt body
- Polyester tension member
- Polyurethane backing
Belts Fields of Use
Bando BANCOLLAN are polyurethane V-belts that provide reliable solutions in very low, low, and medium power ranges across various applications, especially where there are requirements for small pulley diameters.
They are commonly used in smaller machines and devices, such as household and office electrical appliances, sewing machines, kitchen appliances, optical devices, as well as in compact machine tools, power tools, lathes, drills, grinders, electric planers, and many others.
These belts are especially advantageous in applications where oil from processing, gears, or bearings might affect belt properties, in applications that generate ozone during operation, or in applications requiring clean power transmission. The belts are suitable for laboratory and medical devices, food processing devices, as well as vending machines, banknote and coin counters, and ticket machines.
Belts Characteristics
- Small pulley diameters and compact drive dimensions
- Temperature resistance from −30 °C to +70 °C
- Low noise
- Vibration damping
- Abrasion resistance = very clean operation (no small particles or dust released as with rubber belts)
- Resistance to oils, fats, acids, and alkalis
Belts Code Description
Example:
6x350 La VC BANCOLLAN (VC-6x350)
The first part represents the standard V-belt marking system we use across all manufacturers:
| Code Part | Description |
|---|---|
| 6 |
Belt profile (width in mm) |
| 350 La |
Outside length in mm |
| VC |
Belt type with internal teeth and a smooth outer side |
| BANCOLLAN |
Belt type |
The marking inside the parentheses corresponds to the manufacturer's catalog:
| Code Part | Description |
|---|---|
| VC |
Belt type with internal teeth and a smooth outer side |
| 6 |
Belt profile (width in mm) |
| 350 |
Outside length in mm |
