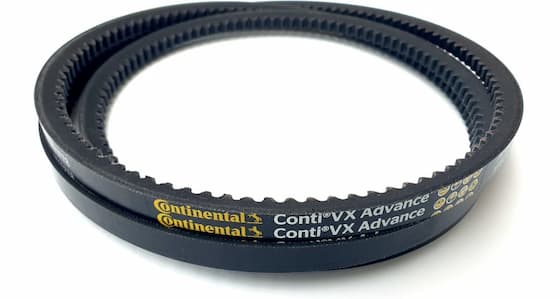

CONTI VX ADVANCE 8VX V-Belts
CONTI VX ADVANCE narrow V-belts with internal teeth for permanent and reliable transmission of the highest power and revolutions in 8VX profile are cut according to US standard RMA/MPTA IP-22 and also correspond to the 25XN profile according to other manufacturer's markings.
The belts are made of highly durable and fiber-reinforced EPDM rubber compound with a temperature resistance up to 130 °C and polyester tensile member. Their optimized flanks provide better friction ratio and up to 3 times higher performance than conventional belts.
Low electrical conductivity – for compliance with requirements to ISO 1813.
The trendsetters with less polycyclic aromatic hydrocarbons (PAH) for clean operation and protection of persons in case of long-term contact with the belt.
Belts Construction
- Fiber-reinforced EPDM rubber bottom section
- Embedding compound
- Polyester tension member
- Cotton-polyester cover fabric with EPDM finish
Belts Fields of Use
The CONTI VX ADVANCE heavy-duty V-belts of the 8VX/25XN profile meet the strongest requiremets of modern drive technology and are used in all areas of mechanical engineering.
Typical application fields include compressors, blowers, machine tools, the paper and chemical industries and many other machines.
Belts Characteristics
- Highest power transmission (up to 3 times higher than conventional V-belts)
- High peripheral speed up to 50 m/s (conventional only up to 30 m/s)
- Can be used in larger installations with greater center distances
- Length range up to 6.85 m
- L = L design – constant tolerance of belts in the set, minimum elongation
- Use with 8V pulleys (custom pulleys)
- Temperature resistant from −40 °C to +130 °C (sheathed belts only up to +70 °C)
- Antistatic according to ISO 1813
- Maintenance-free, improved durability thanks to abrasion-resistant compound
- Low in PAHs – category 2 according to AfPS-GS-2014-01-PAK
Belts Code Description
Example:
8VX 2000 / 25XN 5080 CONTI VX ADVANCE
| Code Part | Description |
|---|---|
| 8VX |
Profile according to RMA/MPTA IP-22 |
| 2000 |
Nominal length in tenths of inches (2000 × 1/10 = 200.0″) |
| 25XN |
Profile – other marking (25 = width in mm) |
| 5080 |
Nominal length in mm |
| CONTI VX ADVANCE |
Type of belt |
Belts Certification
- Factory Electrical Conductivity Certificate of Belts According to ISO 1813 and ISO 9563 (pdf, 104.90 kB)
- ContiTech Explanation of ATEX Certification (pdf, 11.96 kB)
Notice
General factory certificates are not sufficient for belts used in potentially explosive atmospheres.
If a test report according to ISO 1813 and ISO 9563 is required for the application, it is necessary to inform us of the request for delivery of belts including the certificate when ordering them (when ordering belts via Eshop, please write this request in the "Note" field before by sending the order). The certificate is issued by ContiTech after the test in the production plant.
Documents for Download
Rubber Products Optional Services Price List
TYMA CZ Product Overview
Czech and English (PDF 500.38 kB)
Related Products
Taper Lock Bushes
Taper Lock bushes with finished metric or inch bore and keyway to fixing components to a mating shaft without using any special tools.
Measuring Instruments
Our professional-quality special tools and measuring instruments will assist you in maintaining and fitting drive components.
Question about the Belts Category
Do not hesitate to contact us with any questions about products in this category.
Belt Manufacturer Profile
Continental is the world’s largest specialist for rubber and plastics technology in the non-tire rubber sector. A division of Continental AG, the company develops and produces functional parts, components and systems for the automotive and other important industries.
ContiTech importance on immediate proximity to customers. ContiTech is active in 26 countries with 75 production sites and more than 40 R&D facilities and sales organizations. The customers around the world stand to profit: Greater safety. Higher efficiency. Closer proximity.
TYMA CZ, s.r.o., is the official distributor of Continental ContiTech Power Transmission Group.
