Coated or Embossed Open-Ended V-Belts
Polyurethane and polyester open-ended profiles with coating or embossing are manufactured for welding as conveyor belts of any length.
Belts are V-shaped with a glued or extruded surface layer on the back. They are made of highly durable BEHA plastic and can be reinforced with various tensile fibers. They are characterized by high strength, long service life, high temperature and chemical resistance.
Belts Fields of Use
Belts are used as conveyor belts in applications where special properties or belt surface treatments are needed to ensure material transport or increase belt durability.

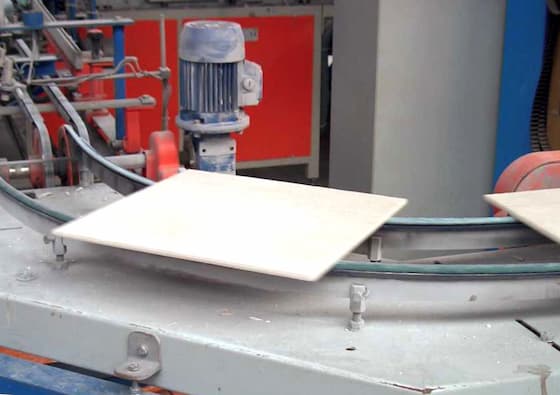

The most common applications are as conveyor belts in the glass, ceramic or food industry, but also in logistics and on packaging machines, in printers and in the paper industry or in the production of building materials.
Belts Characteristics
- High tensile strength and abrasion resistance
- Excellent weldability, possibility of joining the piece
- Resistance to oils, greases, pollution and chemicals
- Temperature resistance from −30 °C to +80 °C
- Can be used in the food industry
Belts Material
Polyurethane or polyester. In some types, reinforced with polyester, glass or aramid tensile fibers.
Belts Code Description
Example:
PU80A 13 × 8 (13/A) - Smooth (84 ShA, Transparent) + PUtex (Red)
Code Part | Description |
---|---|
PU80A |
BEHAbelt material name (PU = polyurethane, the number does not correspond to the designation of the Shore A hardness test) |
13 × 8 | Belt profile dimension in mm |
13/A | Alternative designation of the belt profile |
Smooth | Material surface |
84 ShA | Belt hardness according to the Shore A test |
Transparent | Belt color |
PUtex | Surface layer material |
Red | Surface layer color |
Documents for Download
Related Products
Welding Machines for Round and V-Belts
Welding machines and assembly tools for connecting round and V- belts made of polyurethane (PU) or polyester (PES).
Classic Open-Ended V-Belts
Open-ended V-belts made of thermoplastic polyurethane or polyester of different hardness, surface and other properties. In some types, belts are reinforced with polyester, glass or aramid tensile fibers.
Round Open-Ended Belts
Round open-ended belts made of thermoplastic polyurethane or polyester of different hardness, surface and other properties. In some types, belts are reinforced with polyester, glass or aramid tensile fibers.
Sliding Guides for V-Belts (V Type)
Question about the Belts Category
Do not hesitate to contact us with any questions about products in this category.
Belt Manufacturer Profile
Beha Innovation GmbH is a German company based in Glottertal, Germany. They extrude a complete line of the highest quality Polyurethane and Polyester profiles and conveyor belts for transport and drive applications.
True to the motto “smart conveying”, BEHA has been supplying innovative drive and conveying technology products since 1974. They provide quick and accurate service through their worldwide distribution network.
