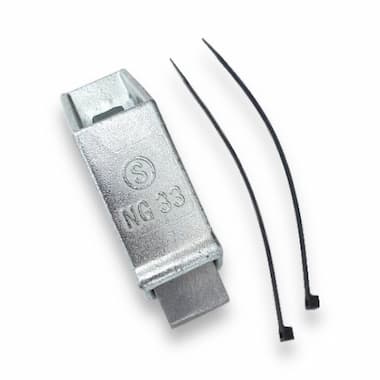

ZV 033 K0 GEO (for CONTI POLYFLAT, for External Screw M12)
Wedge Socket
Wedge Socket Parameters
Type of compatible belt.
Overall length of the wedge socket.
Overall width of the wedge socket.
This standardized product may come from different manufacturers. We will provide you with the currently supplied brand upon request.
In the TYMA Product Catalogues you can find this material also described with the abbreviation G20Mn5N.
Wedge Socket Description
Wedge sockets are used for fastening CONTI POLYFLAT flat belts and CONTI POLYROPE elevator belts. They consist of a cast iron housing in which the flat belt is inserted and secured with a special wedge against loosening. Depending on the method of attachment, they can be fixed with a bolt or with a bolt and a spring.
Wedge Socket Construction
- Socket housing
- Belt
- Wedge
- Eyebolt
- Nut
- Split pin
- Pin
- Washer
- Cable clamp
Wedge Socket Fields of Use
Wedge sockets for CONTI POLYFLAT and CONTI POLYROPE belts are used in elevators and lifting systems. They are certified for use in passenger elevators according to the EN 81-20/50 Standard.
They are available in various widths according to the respective flat belt.
Documents for Download
Dimensions and Parameters of CONTI POLYROPE Flat Ropes and Wedge Sockets
TYMA CZ Data Sheets
Czech and English (PDF 222.32 kB)
Use and Installation of Wedge Sockets for CONTI POLYFLAT Belts and CONTI POLYROPE Ropes
TYMA CZ User Guide
English (PDF 91.51 kB)
Related Products
The trendsetters with less polycyclic aromatic hydrocarbons (PAH) for clean operation and protection of persons in case of long-term contact with the belt.
CONTI POLYFLAT Flat Belts
Polyurethane flat belts for elevators and lifting systems in all industries, forklifts, industrial doors and other applications.
CONTI POLYROPE Flat Ropes
Polyurethane flat elevator belts for elevators and lifting systems. They are certified for use in passenger elevators according to the EN 81-20/50 Standard and the Lift Directive 2014/33/EC.
Elevator Pulleys for CONTI POLYFLAT and CONTI POLYROPE Belts
Special guide, deflection and traction pulleys for CONTI POLYFLAT and CONTI POLYROPE flat belts. They provide belt drive and guidance. Depending on the belt type, they may be smooth or grooved.
