Bando BANCOLLAN DMXL Inch Sizes Double-Sided Timing Belts
Bando BANCOLLAN double-sided timing belts in trapezoidal DMXL inch profile are designed for highly precise and stable transmission in low to medium power ranges, with high torque and at both low and high speeds.
The belts are made from a special BANCOLLAN polyurethane compound and aramid fiber tension member. They allow long-term, maintenance-free operation in miniature and very small transmissions, meeting demands for high transmission capacity, precision, and cleanliness.
Caution
We are sorry, but there are no products offered in this category at the moment.
Please enter desired item, design and quantity, and you can send queries using the Inquiry form below.

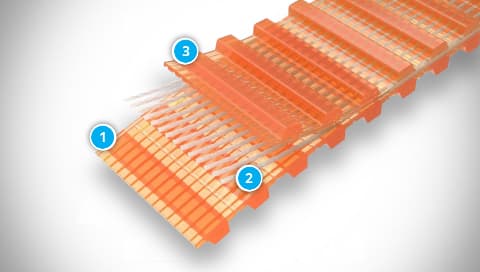

Belts Construction
- Polyurethane teeth
- Aramid tension member
- Polyurethane teeth
Belts Fields of Use
Bando BANCOLLAN polyurethane timing belts provide reliable solutions for very low, low, and medium power ranges across various applications.

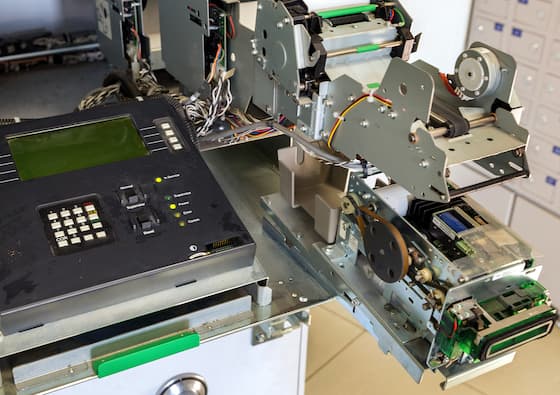

They are typically used in machines and devices ranging from the smallest, miniature equipment such as printers, copiers, 3D printers, plotters, cameras, ATMs, optical devices, kitchen appliances, hand tools, industrial manipulators, and robots, among many others.
Their use is particularly advantageous in applications where oil from technological processes, transmissions, or bearings may affect belt properties (e.g., machining tools or gearboxes), in applications that generate ozone during operation (e.g., optical devices and copiers), or in applications requiring clean power transmission. The belts are suitable for laboratory and medical devices, as well as food processing and packaging machines.
Belts Characteristics
- Highly precise synchronous operation and minimal backlash, even in reverse drives
- High dimensional and shape stability
- High efficiency (up to 98%)
- Temperature resistance from −30 °C to +70 °C
- Maintenance-free
- Abrasion resistance = very clean operation (no small particles or dust released like with rubber belts)
- Resistance to oils, greases, acids, and alkalis
- Resistance to ozone
Belts Code Description
Example:
1040 DMXL 025 BANCOLLAN (130 DMXL 6.4 UK)
The first part represents the standard belt marking system we use across all manufacturers:
| Code Part | Description |
|---|---|
| 1040 |
Belt length in hundredths of inch (1040 / 100 × 25.4 = 264.16 mm) |
| DMXL |
Double-sided belt profile |
| 025 |
Belt width in hundredths of inch (0.25 × 25.4 = 6.4 mm) |
| BANCOLLAN |
Belt type |
The marking inside the parentheses corresponds to the manufacturer's catalog:
| Code Part | Description |
|---|---|
| 130 |
Number of belt teeth |
| DMXL |
Double-sided belt profile |
| 6.4 |
Belt width in mm |
| UK |
Symbols for belt material and tension member material: |
